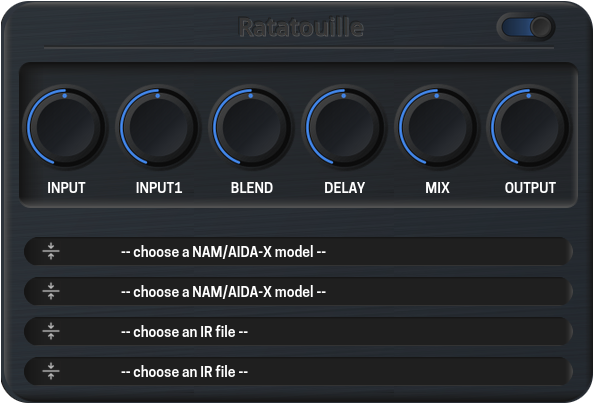

Ratatouille
A Neural Model loader and mixer. Supports *.nam, *.aidax and *.json based model files. Ratatouille allow to load up to two model files and mix there output to archive the wanted sound. The input could be controlled separate for each model. It provide a delta delay control to overcome possible phasing issues between the models in use. Additional it allow to load up to two Impulse Response files and mix them as well. Ratatouille using parallel processing to process the second slot, that reduce the CPU load. It provide a additional buffered Mode which introduce a one frame latency and moves the complete processing into a background thread, that reduce the CPU load even more.
| Control | Default | Min | Max |
|---|---|---|---|
| input | 0.00 | -20.00 | 20.00 |
| output | 0.00 | -20.00 | 20.00 |
| blend | 0.50 | 0.00 | 1.00 |
| mix | 0.50 | 0.00 | 1.00 |
| Delay | 0 | -4096 | 4096 |
| Normalize A | 0.00 | 0.00 | 1.00 |
| Normalize B | 0.00 | 0.00 | 1.00 |
| input1 | 0.00 | -20.00 | 20.00 |
| Normalize Slot A | 0.00 | 0.00 | 1.00 |
| Normalize Slot B | 0.00 | 0.00 | 1.00 |
| enable | 1.00 | 0.00 | 1.00 |
| erase Slot A | 0.00 | 0.00 | 1.00 |
| erase Slot B | 0.00 | 0.00 | 1.00 |
| erase Ir | 0.00 | 0.00 | 1.00 |
| erase Ir1 | 0.00 | 0.00 | 1.00 |
| Buffered | 0.00 | 0.00 | 1.00 |
| Phase Correction | 0.00 | 0.00 | 1.00 |
| Latency | 0.00 frames | 0.00 frames | 192000.00 frames |
urn:brummer:ratatouille
v.1:9.5-1
