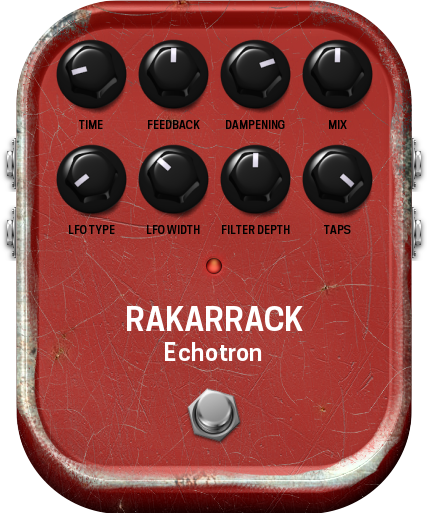

rkr Echotron
An extremely-configurable delay that allows up to 127 taps. Individual tap timing can be customized and loaded through text files. You can also have a custom filter on each tap. Several example files included.
| Control | Default | Min | Max |
|---|---|---|---|
| Bypass | 0 | 0 | 1 |
| Wet/Dry | 64 | 0 | 127 |
| Filter Depth | 0 | -64 | 64 |
| LFO Width | 41 | 0 | 127 |
| Number of Taps | 127 | 1 | 127 |
| TEMPO | 64.00 BPM | 1.00 BPM | 600.00 BPM |
| Dampening | 99 | 0 | 127 |
| Left/Right Crossover | 20 | -64 | 64 |
| LFO L/R Delay | 0 | -64 | 64 |
| Feedback | 0 | -64 | 64 |
| Pan | 0 | -64 | 63 |
| Modulate Delays | 0 | 0 | 1 |
| Modulate Filters | 0 | 0 | 1 |
| LFO Type | 0 | 0 | 11 |
| Activate Filters | 0 | 0 | 1 |
http://rakarrack.sourceforge.net/effects.html#Echotron
