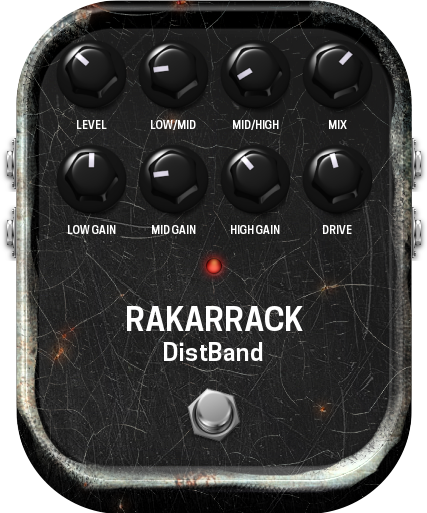

rkr DistBand
A multi-band distortion allowing different character distortion of different frequencies. It is a waveshaping distortion with a different waveshaper selectable for each band.
| Control | Default | Min | Max |
|---|---|---|---|
| Bypass | 0 | 0 | 1 |
| Wet/Dry | 84 | 0 | 127 |
| Panning | 0 | -64 | 63 |
| Left/Right Crossover | 87 | 0 | 127 |
| Drive | 56 | 0 | 127 |
| Level | 40 | 0 | 127 |
| Low Band Type | 0 | 0 | 29 |
| Mid Band Type | 0 | 0 | 29 |
| High Band Type | 0 | 0 | 29 |
| Low Gain | 50 | 0 | 100 |
| Mid Gain | 14 | 0 | 100 |
| High Gain | 35 | 0 | 100 |
| Negate (Polarity Switch) | 0 | 0 | 1 |
| Low/Mid Crossover | 150.00 Hz | 20.00 Hz | 1000.00 Hz |
| Mid/High Crossover | 1200.00 Hz | 800.00 Hz | 12000.00 Hz |
| Stereo | 0 | 0 | 1 |
