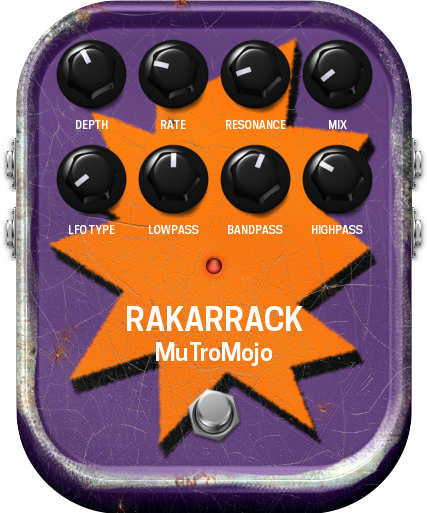

rkr MuTroMojo
State variable filter with envelope or LFO modulation. Allows it to act like a mixable blend of highpass, lowpass or bandpass filter. Similar to a mutron III. Also useful for classic wah pedal emulation when wah parameter is controlled by an expression pedal.
| Control | Default | Min | Max |
|---|---|---|---|
| Bypass | 0 | 0 | 1 |
| Wet/Dry | 0 | 0 | 127 |
| Resonance | 10 | 0 | 127 |
| Tempo | 128.00 BPM | 1.00 BPM | 600.00 BPM |
| LFO Randomness | 0 | 0 | 127 |
| LFO Type | 0 | 0 | 11 |
| LFO L/R Delay | -2 | -64 | 63 |
| Depth | 50 | 0 | 127 |
| Envelope Sensitivity | -30.00 Hz | -64.00 Hz | 64.00 Hz |
| Wah | 2 | 0 | 127 |
| Envelope Smoothing | 0 | 0 | 127 |
| Lowpass Level | 0 | -64 | 64 |
| Bandpass Level | 10 | -64 | 64 |
| Highpass Level | -30 | -64 | 64 |
| Filter Stages | 1 | 1 | 6 |
| Sweep Range | 2000.00 Hz | 10.00 Hz | 5000.00 Hz |
| Starting Frequency | 300.00 Hz | 30.00 Hz | 800.00 Hz |
| Modulate Resonance | 1 | 0 | 1 |
| Analog Gain Mode | 0 | 0 | 1 |
| Exponential Wah | 0 | 0 | 1 |
http://rakarrack.sourceforge.net/effects.html#MuTroMojo
