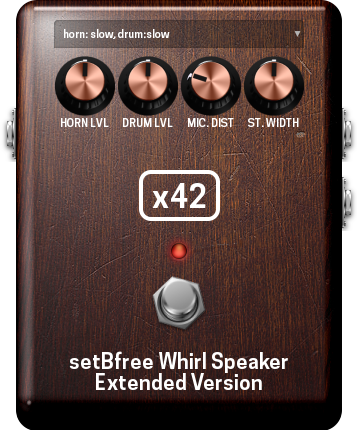

setBfree Whirl Speaker - Extended Version
A rotating loudspeaker emulator designed to imitate the sound and properties of the sound modification device that brought world-wide fame to the name of Don Leslie
| Control | Default | Min | Max |
|---|---|---|---|
| Motors Ac/Dc | 4 | 0 | 8 |
| Horn Level | 0.00 dB | -20.00 dB | 20.00 dB |
| Drum Level | 0.00 dB | -20.00 dB | 20.00 dB |
| Drum Stereo Width | 1.00 | 0.00 | 2.00 |
| Horn Speed Slow | 40.3 RPM | 5.0 RPM | 200.0 RPM |
| Horn Speed Fast | 423.4 RPM | 100.0 RPM | 1000.0 RPM |
| Horn Acceleration | 0.16 s | 0.00 s | 10.00 s |
| Horn Deceleration | 0.32 s | 0.00 s | 10.00 s |
| Horn Brake Position | 0.00 deg | 0.00 deg | 1.00 deg |
| Horn Filter-1 Type | 0 | 0 | 8 |
| Horn Filter-1 Frequency | 4500.00 Hz | 250.00 Hz | 8000.00 Hz |
| Horn Filter-1 Quality | 2.75 | 0.01 | 6.00 |
| Horn Filter-1 Gain | -30.00 dB | -48.00 dB | 48.00 dB |
| Horn Filter-2 Type | 7 | 0 | 8 |
| Horn Filter-2 Frequency | 300.00 Hz | 250.00 Hz | 8000.00 Hz |
| Horn Filter-2 Quality | 1.00 | 0.01 | 6.00 |
| Horn Filter-2 Gain | -30.00 dB | -48.00 dB | 48.00 dB |
| Drum Speed Slow | 36.0 RPM | 5.0 RPM | 100.0 RPM |
| Drum Speed Fast | 357.3 RPM | 60.0 RPM | 600.0 RPM |
| Drum Acceleration | 4.13 s | 0.01 s | 20.00 s |
| Drum Deceleration | 1.37 s | 0.01 s | 20.00 s |
| Drum Brake Position | 0.00 deg | 0.00 deg | 1.00 deg |
| Drum Filter Type | 8 | 0 | 8 |
| Drum Filter Frequency | 811.97 Hz | 50.00 Hz | 8000.00 Hz |
| Drum Filter Quality | 1.60 | 0.01 | 6.00 |
| Drum Filter Gain | -38.93 dB | -48.00 dB | 48.00 dB |
| Horn Signal Leakage | -16.47 dB | -80.00 dB | -3.00 dB |
| Horn Radius | 19.20 cm | 9.00 cm | 50.00 cm |
| Drum Radius | 22.00 cm | 9.00 cm | 50.00 cm |
| Horn X-Axis Offset | 0.00 cm | -20.00 cm | 20.00 cm |
| Horn Z-Axis Offset | 0.00 cm | -20.00 cm | 20.00 cm |
| Microphone Distance | 42.00 cm | 9.00 cm | 150.00 cm |
| GUI to Plugin Notifications | 0.00 | 0.00 | 1.00 |
| Link Speed Control | 0 | -1 | 1 |
| Microphone Angle | 180.00 deg | 0.00 deg | 180.00 deg |
| Horn Stereo Width | 1.00 | 0.00 | 2.00 |
| Current Horn speed | 0.0 RPM | 0.0 RPM | 1000.0 RPM |
| Current Drum speed | 0.0 RPM | 0.0 RPM | 600.0 RPM |
| Current Horn position | 0.00 deg | 0.00 deg | 1.00 deg |
| Current Drum position | 0.00 deg | 0.00 deg | 1.00 deg |
http://gareus.org/oss/lv2/b_whirl#extended
v.0:2058.0-11
