Pulse VCO

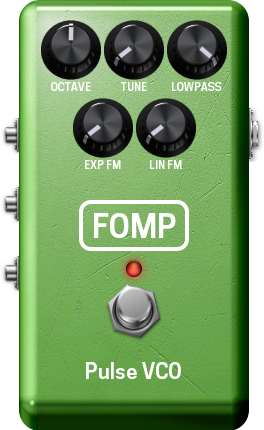

Plugin screenshot

Fomp is an LV2 port of the MCP, VCO, FIL, and WAH plugins by Fons Adriaensen. Based on the principle of using a precomputed interpolated dirac pulse. This is the pulse variant (flat amplitude spectrum). Aliases should be below -80dB for fundamental frequencies below the sample rate / 6 (i.e. up to 8 kHz at Fsamp = 48 kHz). This frequency range includes the fundamental frequencies of all known musical instruments. Features: Modeled by FOMP

Control Default Min Max
Octave 0 -4 4
Tune 0.00 0.00 1.00
Exp FM gain 0.00 0.00 4.00
Lin FM gain 0.00 0.00 4.00
LP filter 1.00 0.00 1.00
http://drobilla.net/plugins/fomp/pulse_vco v.0:0.0-4
