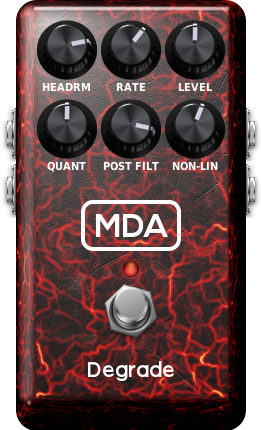

The MDA Degrade is a signal degrader with extensive controls. Use Quantize for bitcrushing, Rate for sample rate reduction and Integrator to reduce aliasing. Use Non-Lin to add non-linear distortion to the signal, set Headroom to configure when the non-linear behavior starts to occur and use Evenodd to choose between even or odd harmonics. Finally, use Post Filter to clean up the high frequency artifacts in the signal. Features: Modeled by MDA
Control | Default | Min | Max |
---|---|---|---|
Headroom | -6.00 dB | -30.00 dB | 0.00 dB |
Quant | 10.00 bits | 4.00 bits | 16.00 bits |
Rate | 48000.00 Hz | 4800.00 Hz | 48000.00 Hz |
Integrator | 0 | 0 | 1 |
Post Filter | 15000.00 Hz | 200.00 Hz | 20000.00 Hz |
Non-Lin | 0.16 | 0.00 | 1.00 |
EvenOdd | 1 | 0 | 1 |
Output | 0.00 | -20.00 | 20.00 |
